Understanding Welding Positions: A Comprehensive Guide

Working as a welder is a challenging yet exciting journey that demands precision, skill and an abundance of caution. Welders use their knowledge and skills to join various metal pieces in order to assemble or fabricate products as well as build and repair infrastructure and vehicles. Key to this process are welding positions, which dictates the position of the weld joint in relation to the welder's body. This guide explores welding positions, including fundamental types like 1G position welding and advanced positioning such as 6G welding, which is critical to producing high-quality welds for various applications. Every welder needs to understand these concepts, as this skill enhances the quality of the finished product, and can enhance career potential.

What Are Welding Positions?

There are 6 welding positions, and each kind can be completed with either a Fillet Weld (“F”) or a Groove Weld (“G”). Welding positions are defined as the various orientations in which welding can be performed. Each position impacts the technique and skill required by the welder. The first four welding positions, also known as the primary welding positions, are the 1G, 2G, 3G, and 4G. Each present a unique challenges and require planning and position-specific approaches. For example, the 1G position welding is often seen as the most accessible and easiest to master. In contrast, the two advanced welding positions, 5 and 6, are considered to be much more challenging.

The 6G welding position in particular occurs at 45-degree angle, and it is considered to be the most challenging of the positions. Practice and experience are required to build expertise in the 6G position, so these types of tasks are usually assigned to experienced welders. Experience in the 6G position is vital, as it directly affects the quality and integrity of welds.

Learning these positions are essential for safety and efficiency on the job, and welders can expand their job opportunities and advance their careers by mastering these techniques. Welding positions are integral to industries such as construction, automotive, shipbuilding and aerospace, due to the locations of the weld.

It is crucial for any aspiring welder to know the difference between a fillet weld and groove weld.

• Fillet weld (F) – joins two pieces of metal at a perpendicular orientation.
• Groove weld (G) – joins two pieces of metal where the joining edges are beveled, and there is a gap between the two edges.

Each position has unique characteristics and applications, and all are completed with either a fillet weld or a groove weld.

The 4 Basic Welding Positions

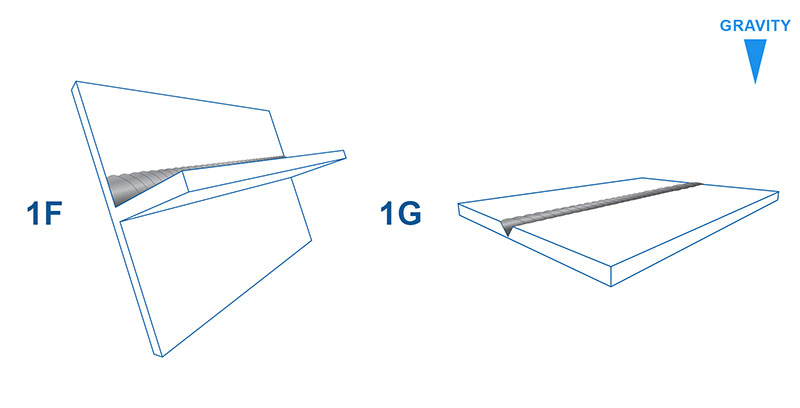

Flat Position 1F & 1G

The 1G welding position involves groove welding on a horizontal surface, and is an easy welding position for the beginning welder to gain competence in. The 1F weld also runs along a horizontal surface created by two perpendicular pieces being joined together by a fillet weld.

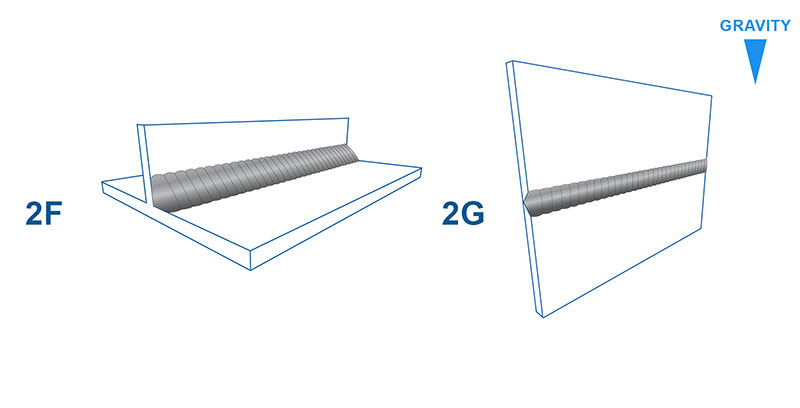

Horizontal Position 2F & 2G

The 2F position welding is performed on a workpiece that requires a fillet weld, such as a horizontally situated Tee-joint. The 2G position represents welds where the axis of the joint runs horizontally on a piece that is vertically oriented. 2G in particular requires precision to prevent defects caused by molten metal rolling off the workpiece.

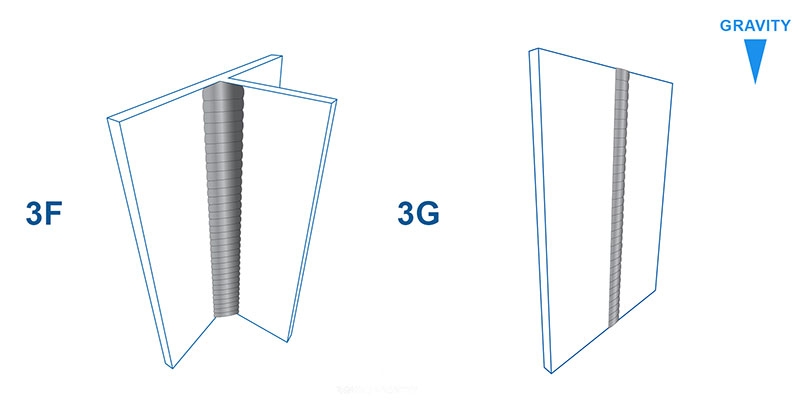

Vertical Position 3F & 3G

The 3G position in welding also applies to a vertical workpiece, but in this case the groove weld joint runs from top to bottom. The 3F position is also vertically oriented and applies to the weld seam running from top to bottom on perpendicular joint. Both positions are challenging due to welder’s need to control the weld puddle against the force of gravity. This welding position is common on structural applications.

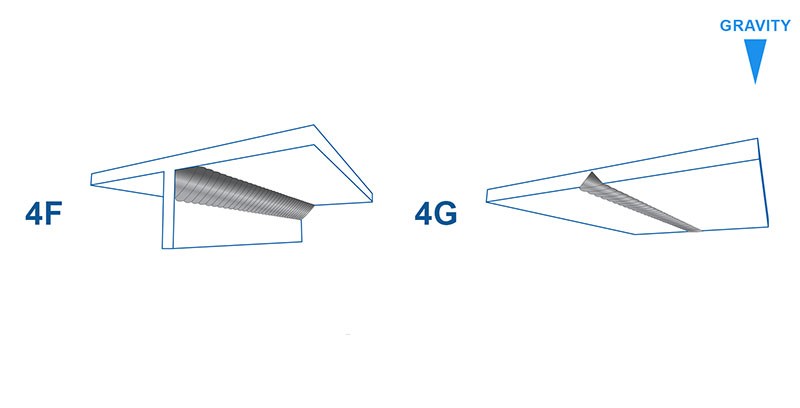

Overhead Position 4F & 4G

Overhead welding is position number 4. Groove welds are designated as 4G, and fillet welds are designated 4F. Overhead welding has unique challenges, due to the weld being made above the welder, typically on the underside of a workpiece. One of the most challenging traits is how gravity affects the flow of molten metal. Typical overhead welding tasks might include bridge and construction work, repairing the frame of a vehicle on a lift, or the bottom of the hull of a drydocked ship.

Advanced Welding Positions

Often a welding project involves combines welding positions. Bridge repair work sometimes requires standing on a scaffolding under the structure while working in the overhead positions 4F or 4G, depending on the task. However, if that task happens to be repairing a pipe fixed at a 45 degree angle, then that overhead position weld includes the techniques of position 6G. The angle of the workpiece makes controlling the weld-pool a tricky job, especially if working on a platform in high winds or in tight spaces.

The key to successful welding is plenty of practice and continuous learning. Welders should spend as much time as allowed to practice in a hands-on environment. Mastering advanced positions like 6G welding can significantly enhance a welder's skill set.

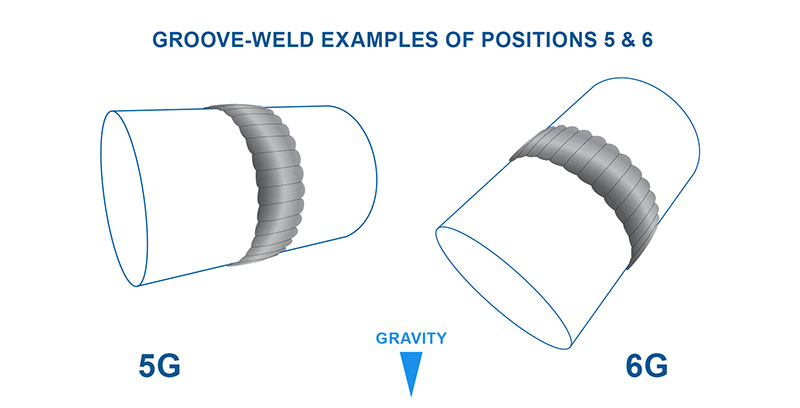

Welding Position 5F & 5G

This position is for welding horizontally-oriented pipes that are in a fixed position. This is commonly seen in large infrastructure such as pipelines, oil refineries, ships and chemical plants. Since the fixed-pipe cannot be rotated or moved, this type of welding can place a high demand on the welder’s skills. In most cases, welding in position 5 usually involves the welder repositioning themselves in many of the previously described positions to gain access to the entire circumferences of the pipe. The 5F position designates welding a horizontal pipe to vertical flat metal plate, while the 5G focuses on groove welding a horizontally fixed pipe.

Welding Position 6F & 6G

Welding Position 6F and 6G are pipe welding positions, and in both types the piping is at a 45 degree angle. The 6F position is the same as the 5F position except that the weld line is at a 45 degree angle. The 6G position is groove welding two sections of a fixed pipe that is also inclined at 45 degrees.

Factors Influencing Welding Positions:

Ensuring a strong and complete weld requires choosing the right welding position or positions, and there are several factors that influencing this decision. Material type, filler metal, and equipment suitability all play vital roles. Some materials may require the 1G welding position for better control, while others might be more suited to vertical welding or overhead welding.

The choice of filler metal affects weld behavior and final properties of the joint. Welders must match the filler metal with the base material and position for optimal results. Additionally, different welding positions are affected by:

• Sightline
• The location of the workpiece
• Workpiece geometry
• Accessibility to the joint
• Thickness of the workpiece material
• Weld joint specified
• Type of welding process being used
• Welder skill level

Choosing the Right Welding Position

Selecting the appropriate welding position is key to achieving optimal results. Assess the project's requirements and any workspace constraints. Situational awareness is key to understanding your environment. Always prioritize safety. Tight spaces might limit your ability to work in certain positions, requiring adaptation or specialized equipment. By choosing the right position and selecting the proper equipment, a welder can achieve high quality welds.

Safety Measures for Welding Positions

Ensuring safety in welding positions is the most important factor in welding. The right personal protective equipment (PPE) is critical, regardless of welding position being used. Overhead welding requires helmets with appropriate shading and protective clothing to guard against falling debris.

Common hazards vary with each position, such as heat exposure in flat positions or falling materials in overhead positions. Minimize these risks by maintaining a clean workspace, and ensuring that the space has adequate ventilation to avoid harmful fumes and gas byproducts. Inspect your welding equipment and Personal protective gear on a regular basis, and replace any items that are questionable. There are no shortcuts when it comes to welding safety.
