Electrical Symbols: Understanding the Basics

As a follow-on to our article on the basic concepts of electricity, we present this primer on electrical symbols. Electrical symbols are the visual depiction of elements used in residential, commercial, and industrial electrical environments. Whether you are reading a schematic for a control panel or wiring a household circuit, knowing these electrical symbols helps you communicate clearly, troubleshoot efficiently, and work safely.

Key Points Covered:

• What electrical symbols are for & why they matter
• Common electrical symbols and what they indicate
• Industry standards and guidelines
• Best practices when reading electrical schematics

Introduction to Electrical Symbols

Electrical symbols are simplified graphic icons that represent components, devices, and functions in electrical and electronic circuits. Instead of drawing a physical resistor or switch, schematic symbols convey the component’s type and role in a clearly readable format.

Symbols are essential to electrical diagrams because they turn complex systems into clear, understandable visuals. Technicians, electricians, engineers, and students use circuit symbols to design circuits, document installations, perform maintenance, and diagnose faults. Used properly, electrical symbols reduce errors, save troubleshooting time, and support industry compliance by specifying the proper codes and adhering to established safety practices.

Common Electrical Symbols and Their Meanings

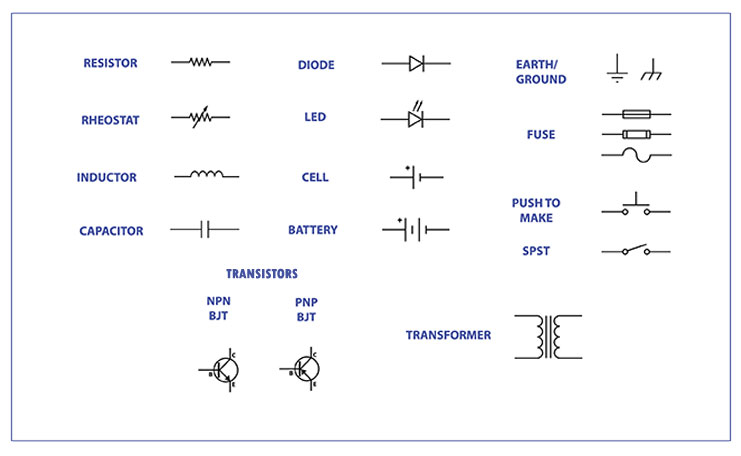

Many electrical symbols appear within the typical schematic. Below are widely used examples and how they are applied¹:

• Resistor: A zigzag line (or a rectangle in some standards) that limits current. A resistor is used to set voltage levels and protect components against excessive current.
• Rheostat/Variable Resistor: Another type of resistor that has the ability to adjust the amount of resistance. Another word for this type of component is the Rheostat. It is represented by the same zigzag line as a resistor, but with an arrow angled though it.
• Capacitor: Two parallel lines represent the capacitor, with the polarized version having one curved line. This devices stores an electric charge and can discharge power when needed. This is useful in filtering and timing circuits.
• Inductor: Represented by a series of loops or a coil symbol. An inductor stores energy in a magnetic field, which can then be used in filtering and power supplies.
• Switch: An angled break in a line represents an open or closed path (depending on depiction). There are many variants, such as a single-pole single-throw (SPST), a double-pole double-throw (DPDT), and a momentary push-button.
• Battery/Cell: Alternating long and short parallel lines represent a direct current battery source. Each long-short line depiction indicates a power cell within the battery.
• Ground/Earth: Represented by a set of descending-width lines at the end of a circuit. This provides both a reference potential as well as a safety pathway.
• Diode: A triangle meeting a line. This device acts as a one-way valve, allowing flow from anode to cathode. There are many types of diodes, such as light-emitting (LED) and the diode-resistor. A diode can be used for rectification and protection.
• Transistor: Basic transistors are represented by NPN or PNP symbols. There are at least a dozen types for various purposes. Transistors control current flow, and are an essential component in amplification and switching.
• Transformer: Two parallel coils surrounding parallel lines indicating a ferrite core transformers, which steps AC voltage up or down, depending on need.
• Fuse and Circuit Breaker: A small rectangle or curved element (fuse) or a switch-like device (breaker). Protects against overcurrent.

In electrical circuit diagrams, these symbols are connected with lines that represent wires (conductors). Electrical charts use labels, ratings, and reference designators next to electrical symbols, to add important details for the electrical worker to know. These designators help the electrical technician to identify components, their specifications, and their location in the circuit. Reading an electrical schematic involves following the flow of power, signals, and control paths from the source, through loads and protective devices, to the final output.

Standards and Guidelines for Electrical Symbols

As the nature and principles of electricity evolved in the 19th and 20th centuries, the documentation of electrical devices became standardized. This was an important step not just from a design aspect; it also fostered safety standards. Professional organizations developed standard sets of electrical symbols to use in drawing diagrams, so electrical workers could understand the circuits involved and how to safely handle them. The 20th Century saw the establishment of governing bodies that set and maintain national and international standards to ensure that electrical drawing symbols are consistent and unambiguous.

Major Governing Bodies That Define Electrical Symbol Standards

The Institute of Electrical and Electronics Engineers (IEEE)

The IEEE publishes the North American standards for use across power systems, electronics, and controls. IEEE standards aligns with industry practices in utilities, manufacturing, and technology. The IEEE was founded on January 1, 1963, by merging the American Institute of Electrical Engineers and the Institute of Radio Engineers. IEEE is based in New York City, with an operations center in New Jersey. IEEE electrical standards can be accessed via subscription, with many IEEE document sections having free access. The IEEE is a professional association, and has over 533,000 members worldwide.

The International Electrotechnical Commission (IEC)

The IEC, headquartered in Geneva, Switzerland, provides a globally aligned set of schematic symbols, especially for equipment labeling and international manufacturing. IEC 60617 is a key reference for graphical symbols. The International Electrotechnical Commission organization was founded on June 26, 1906, to provide standardization for electrical technology, electronics and related fields. and is observed by 89 member countries.

An industry-approved electrical symbols chart helps the end-user identify electrical symbols and understand variations in electrical circuit symbols across standards.

Best Practices When Using Electrical Symbols

Best practices for working with electrical symbols, as well as creating and interpreting electrical schematics, are crucial for efficiency and safety.

Here are 6 must-know tips:

• Keep diagrams legible and organized
• Use only standard electrical symbols and reference designators
• Provide a clear title block and document all revisions made by date
• Include a legend for any nonstandard items
• Verify drawings against the latest codes and equipment datasheets
• When reviewing a schematic, start with the power source, identify protective devices, trace control signals, and confirm grounding and bonding paths

Additional Resources For Electrical Standards

There are additional resources that all electrical workers should know about and have access to. This includes the IEC and IEEE publications, the National Electrical Code, as well as manufacturer datasheets and application notes.

Many CAD tools, such as AutoDesk, include built-in libraries of circuit symbols that conform to IEEE or IEC standards, making it easier to select accurate electrical circuit symbols and assemble clear circuit diagram symbols in documentation.
