Basics of Electricity: Essential Concepts Explained
Electricity plays a critical role in our modern daily existence. It is the energy source that powers everything from home appliances to highly sophisticated transportation systems, and most things in between. For any person aspiring towards a career in electrical engineering, electronics or the electrical trades, a solid understanding of the basics of electricity is indispensable.
This guide delves into the core concepts of electricity by explaining voltage, current, and resistance. Then we examine the many types of electrical circuits with an emphasis on conductors and insulators, power and energy principles, and important safety practices that must always be followed. This overview is designed to build a strong understanding of the foundation of the fascinating world of electricity.
Basics of Electricity: What Is Electrical Energy?
Electricity is a form of energy that exists through charged particles like electrons and protons. It is integral to almost every facet of modern life. Electricity powers our homes, phones, appliances, computers, city lights, industrial machinery, trains, public works and so much more. The list of conveniences powered by electricity is seemingly endless.
This abundance of power is available to us through the generation of current, which is accomplished mostly using conventional and nuclear powerplants, as well as hydroelectric dams; there is also contributed energy from solar and wind power, as well as cogeneration technologies. Regardless of how current is produced, it can be harnessed to perform countless tasks. This makes electricity one of the most versatile energy forms available to us.
Modern society has become completely dependent on electrical power, so is important for us to recognize that electricity is analogous to survival. As technology progresses and our population grows, our continued reliance on electric energy will require continued investment into electrical technologies, as well as the engineers and technicians that design, build and service electrical systems. No matter what role someone plays in the generation and management of electricity, they will need to have a solid understanding of the laws of electricity.
Key Concepts: Voltage, Current, and Resistance
Understanding the basics of electricity requires familiarity with three fundamental concepts:
- Voltage: the electric potential difference between two points.
- Current: defines the flow of electric charge.
- Resistance: signifies the opposition to that flow.
These three concepts constitute the core of electrical theory, and they are essential knowledge for anyone pursuing careers in electrical engineering, electronics, the skilled trades or renewable energy. These principles of electrical knowledge are applicable in almost every industry.
Voltage is the term used to describe the electrical potential difference, and it measures the force pushing electric charges through a circuit. Measured in volts (V), it can be likened to pressure driving electrons along a conductor.
Current, referred to as “amps” or amperes (A), signifies the flow of an electric charge through a conductor, similar to water flowing in a pipe. The higher the pressure (the voltage), the more water (current) is pushed through the pipe.
Resistance, quantified in ohms (Ω), opposes the flow of electric current. Materials have varying resistance levels directly affecting the amount of current that can pass through it for a given voltage. Conductors like copper exhibit low resistance, allowing easy current flow, while insulators like rubber have high resistance, hindering current.
Ohm’s Law: the Interrelation of Voltage, Current & Resistance

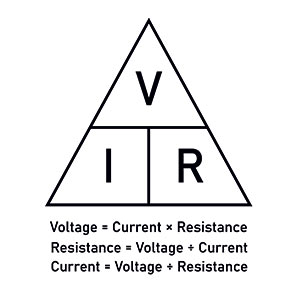

Ohm’s law describes the relationship between the three fundamental concepts. There are 3 variations of basic Ohm’s law:
- Voltage = Current * Resistance: This formula states that voltage equals current multiplied by resistance (V = I × R).
- Current (Amperes) = Voltage / Resistance: This version allows us to calculate current flowing through a circuit by dividing voltage by resistance.
- Resistance = Voltage / Current: The resistance of a component or circuit can be calculated if voltage is divided by current.
The above three formulas assume that you have the known values of at least two of the formula’s constants.
Please note that this is an introductory guide to basic Ohm’s Law, so we will focus exclusively on how it applies to Direct Current (DC) applications. Ohm’s law for Alternating Current (AC) involves additional considerations for impedance and phase relationships, especially when dealing with capacitors and inductors.
Types of Electrical Circuits
Understanding electricity basics involves knowledge of different electrical circuit types: primarily series circuits, parallel circuits and mixed circuits.
- Series Circuits
- Parallel Circuits
- Mixed Circuits
- Closed Circuits
- Short Circuits

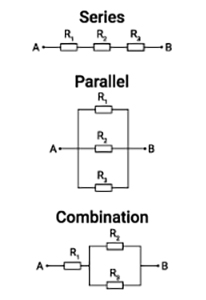

Series Circuit Example
This type of circuit connects all of its components along a single current path, which means that if one component fails, the entire circuit will no longer function. The most basic example of a series circuit is the flashlight. The components include the power source (battery), conductors (wires), an on/off toggle switch, and the load (the bulb). Power (current) flows through wires and the bulb, while the bulb's resistance determines current passage.
The switch acts as an interrupter – if off, it disconnects the series circuit, but when switched on, it allows current to flow to the bulb, activating the circuit. Another great example is Christmas tree lights - if one bulb burns out, the whole string goes out.
Parallel Circuit Example
Comprised of multiple pathways for current flow, all intact circuits will continue to work if one of more of the individual pathways are broken or interrupted. Automotive systems also rely on circuits to control functions like headlights, power windows, the sound system, air conditioning, and an engine management systems. Each of these circuits run off of a dedicated breaker or fuse at the fuse block. Using the headlight system as an example, each bulb is fed power through a parallel circuits which ensures that all of the lights in the circuit remain lit, even if one or more bulbs burn out.
Combination/Mixed-Circuit Example
Comprised of both series and parallel circuits, depending on the design and intended function of the device the circuits belong to. An examples might include a light switch with a fuse where the fuse is in series with that single switch, and it is followed by multiple parallel components.
Using a dining room chandelier as a mixed circuit example, we can see that the power line leading to the chandelier, and the switch along the way, is in series – if the power switch is off, it interrupts the power flow, and the chandelier does not light up. Turning on the switch sends power to all of the bulbs in the chandelier, because as the series circuit enters the chandelier, the bulbs are then wired in parallel, sending a power connection to each bulb. If one of the bulbs burns out, the rest will stay light because it is still being fed power. This is an example of a mixed-circuit (starts with a series connection, terminating with multiple bulb sockets wired in parallel.
Closed Circuits & Short Circuits
A closed circuit simply means that the electricity can flow from the source, get consumed by the appliance or apparatus by being converted into work. A short circuit is an inadvertent misdirection and/or overload of low-resistance connection, which then results in an excess flow of current.
Conductors and Insulators: Their Role in Electrical Systems
Understanding what materials conduct electricity, and what materials do not, is essential in understanding the role of conductors and insulators.

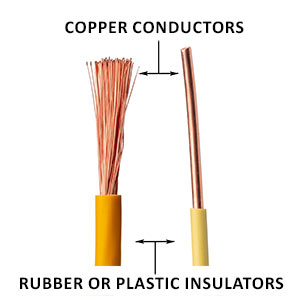

- Conductors: Metals like copper and aluminum (metals) are widely used in wiring for their excellent conductivity.
- Insulators: Materials such as rubber, glass, and plastic, resist electricity flow so they are often used to coat wires to prevent accidental electrical contact.
Every type of material can significantly influence how electricity flows through it. A material that is a conductor possesses free electrons that enables the charge to flow with little to no resistance. Insulators lack these electrons, which creates a barrier to the flow of electricity. This distinction is a crucial concept in circuit design, as the engineers who design a circuit for a specific application will want to completely understand the properties of each selected conductor and insulator. In short, conductors form connections, while insulators ensure separation, safety, and preventing unintended current leakage.
Conductors and insulators exist in every electronic device, an example being a radio. A radio uses copper wire for efficient power transmission, with each wire coated in a plastic or rubber sheathing to insulate each wire from shorting out against a different conductor.
In large systems like power distribution networks, conductors transport electricity over distances, while insulators keep them secure, especially outdoors where weather poses risks. Understanding the unique properties of these fundamentals is essential for those pursuing a career in the electrical industry.
Power and Energy in Electrical Systems
Electrical power and energy are foundational to supporting modern technology and infrastructure. As a top-level concept, you can think of power as the rate of electrical energy transferred or converted into work, and it is measured in Watts (W). Energy has the capacity to do that work, which is measured in Watt-hours (Wh). Understanding Watts and What-Hours is critical for complex systems.
Power in electrical systems is calculated using this formula: Power (Watts) = Voltage (Volts) × Current (Amperes). This calculation determines device power consumption, essential for assessing circuit efficiency. Understanding this concept helps students properly assess an electrical system for its intended use.
Energy efficiency is vital in electrical usage, and is a major goal in energy consumption planning when contemplating environmentally friendly practices. Efficient energy use reduces electricity bills and helps manage demand on power plants. This contributes to efficiency and sustainability. Energy-efficient appliances can go a long way to mitigate carbon footprint.
Safety Practices in Handling Electricity
Understanding the potential hazards of working with electricity can never be ignored. Safety is vital, as electrical shocks can range from minor shocks to severe injuries like burns and electrocution, or death. Common hazards include not using sufficient personal protective equipment (PPE) exposed wires, overloaded circuits, and improper grounding. Recognizing these risks is essential for maintaining a safe working environment.
Proper safety gear is crucial when handling electrical systems. Personal protective equipment (PPE) includes insulated gloves, goggles, and flame-resistant clothing. Depending on the type of circuit being worked on, there may be additional PPE stipulated by local codes and by OSHA. Insulated tools designed specifically for electrical work can prevent accidents.
Following safety protocols is essential for electrical work. Wearing the correct PPE for the job is only part of the protocol. Before you begin working on an electrical device or system, make sure that the correct circuit breaker has been de-energized, or the power supply to the circuit has been completely disconnected. Ensuring that the power is off before beginning any task is a simple action preventing many accidents. Water conducts electricity, so make sure surfaces are dry to minimize shock risk. Organize workspaces to reduce accidental chances of an exposed live wire.
Education and training are crucial for electrical safety. Programs covering basic electrical theory, safety practices, and hands-on training prepare individuals to work confidently and safely. By prioritizing safety and adhering to established protocols, risks can be minimized.
